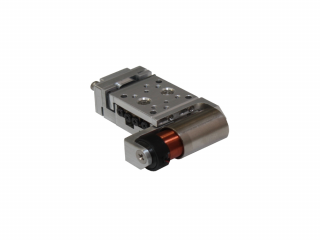

Precision Positioning Stage PPS-28SM

Product Highlights

  • Travel Range:
    26 mm - 102 mm
  • Encoder Resolution:
    0.05 µm (Closed Loop)
  • Repeatability, bi-directional:
    ± 0.2 µm
  • Repeatability, uni-directional:
    0.2 µm
  • Max. Speed:
    5 mm/s
  • Max. Load:
    5 kg
  • Encoder Options:
    Analog or Digital
  • Height:
    15 mm
  • Bearing Type:
    Crossed Roller Bearing


Description


The PPS-28 Stepper Motor version is suitable for applications requiring high speed and high blocking force. Miniature crossed roller bearings assure high stiffness and guiding accuracy for loads up to 50 N (horizontal orientation). It utilizes a 2-phase stepper motor resulting in high speed (> 5 mm/s) and high blocking force (> 5 N). The PPS-28SM is available in open loop or with an external encoder. Open loop resolutions of 0.1 µm are achievable. Versions capable of operation in vacuum (10-6 mbar) are available. The PPS-28SM is compatible with the MMC-200 controller.


Specifications


Travel Dependent
Travel Range 26 mm 51 mm 76 mm 102 mm
Straightness, Flatness (µm) ± 1.5 ± 2.5 ± 3.0 ± 3.5
Pitch (µrad) ± 50 ± 70 ± 80 ± 100
Yaw (µrad) ± 60 ± 75 ± 90 ± 100
Weight (g) N/A N/A N/A N/A
Limit Switch Magnetic
Motor Compatibility
Motor Type Stepper Motor
Max. Speed (mm/s) 5
Motor/Feedback Dependent Specifications
Encoder Option None (Open Loop) Analog (1 Vpp) Digital (RS-422) Digital Low Cost (0.5 µm)
Typical Resolution (µm) 0.1 0.05 0.05 0.5
Repeatability, bi-directional (µm) ± 4.0 ± 0.2 ± 0.2 ± 1.0
Repeatability, uni-directional (µm) 0.5 0.2 0.2 1.0
Load Characteristics
Orientation Fx (N) Fy (N) Fz (N) Mx (N·m) My (N·m) Mz (N·m)
Max. Load 5 50 50 1 1 1
Operating Conditions
Environmental Options Atmospheric High Vacuum 10-6 bar


CAD Files


Product Configurations
3D Preview
CAD
PPS-28SM-21410
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-21416
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-23410
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-23416
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-24410
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-24416
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-25410
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-25416
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-21010
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-21016
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-21210
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-21216
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-21310
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-21316
Motor Type
Stepper Motor
Travel Range
26 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-23010
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-23016
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-23210
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-23216
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-23310
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-23316
Motor Type
Stepper Motor
Travel Range
51 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-24010
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-24016
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-24210
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-24216
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-24310
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-24316
Motor Type
Stepper Motor
Travel Range
76 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-25010
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-25016
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
None (Open Loop)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-25210
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-25216
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
PPS-28SM-25310
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
Atmospheric
PPS-28SM-25316
Motor Type
Stepper Motor
Travel Range
102 mm
Encoder Option
Digital (RS-422)
Limit Switch
Magnetic
Environmental Options
High Vacuum 10-6 bar
