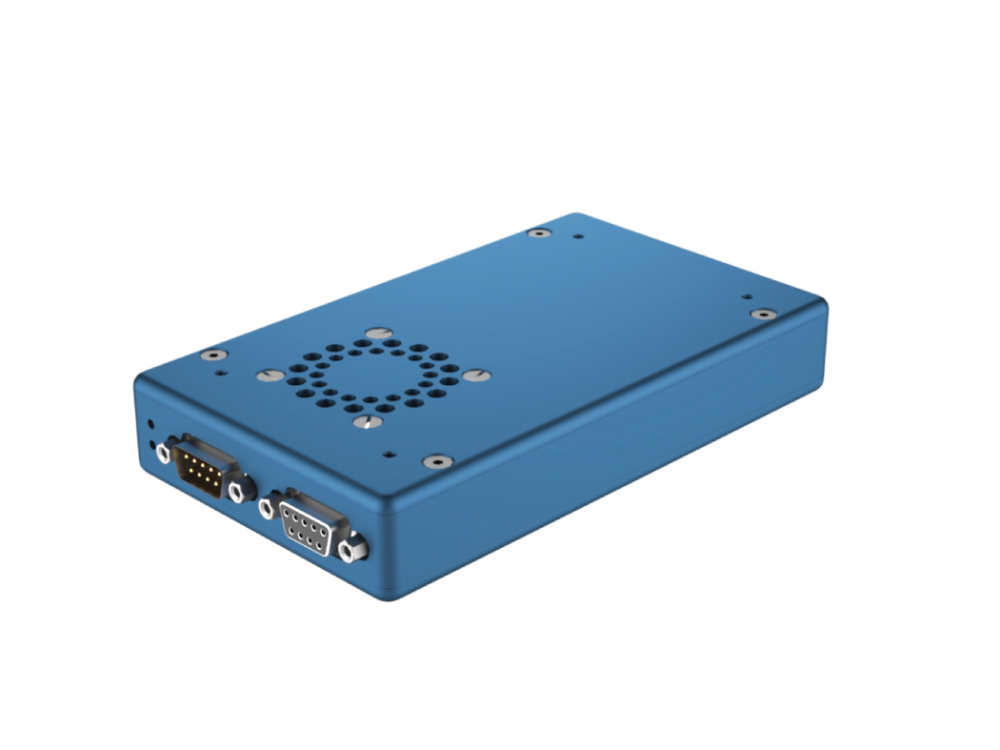

Modular Motion Controller MMC-110

Product Highlights

  • Motor Type:
    Piezo Motor
  • Interface:
    USB 2.0, RS-232
  • Axes:
    1, stackable up to 16
  • Software:
    Windows GUI, LabView VI
  • Max. Speed:
    > 10 mm/s (Stage Dependent)
  • Resolution:
    < 1 nm
  • Controller for stick-slip, multi-phase piezo stages


Description

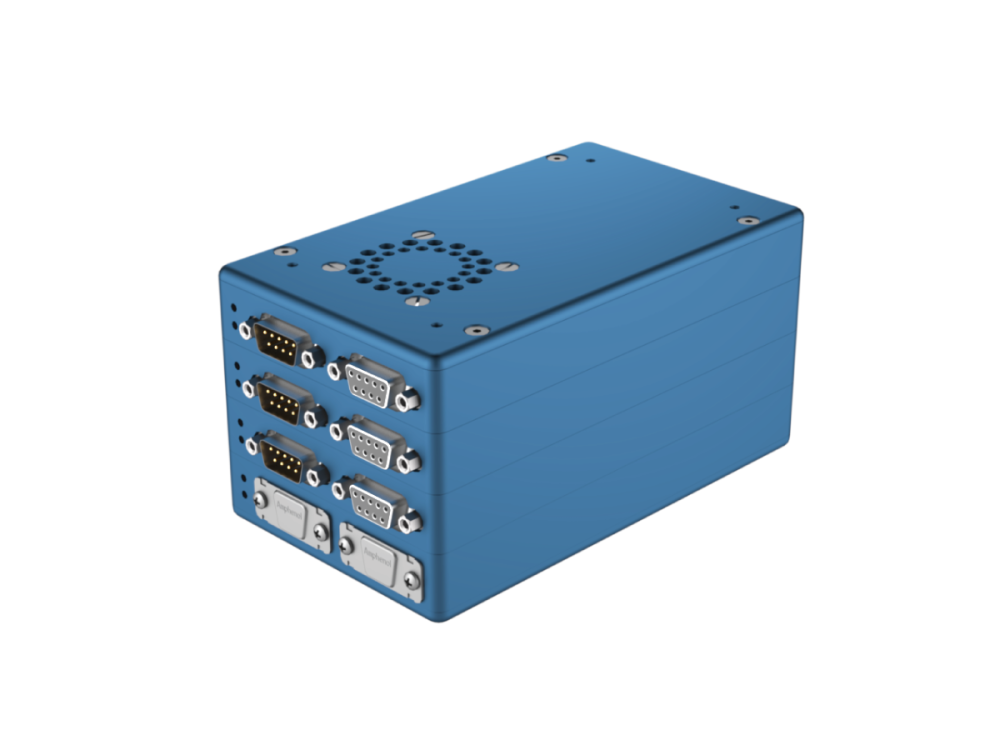

The MMC-110 is a high performance piezo motor controller. It allows speeds beyond > 10 mm/s with our patent-pending multi-phase piezo motor at resolutions of < 1 nm. Multiple units can be stacked as a compact multi-axis module and interface with a computer via a single USB or RS-232 cable. MICRONIX Motion Control Language allows for easy programming through simple ASCII commands.


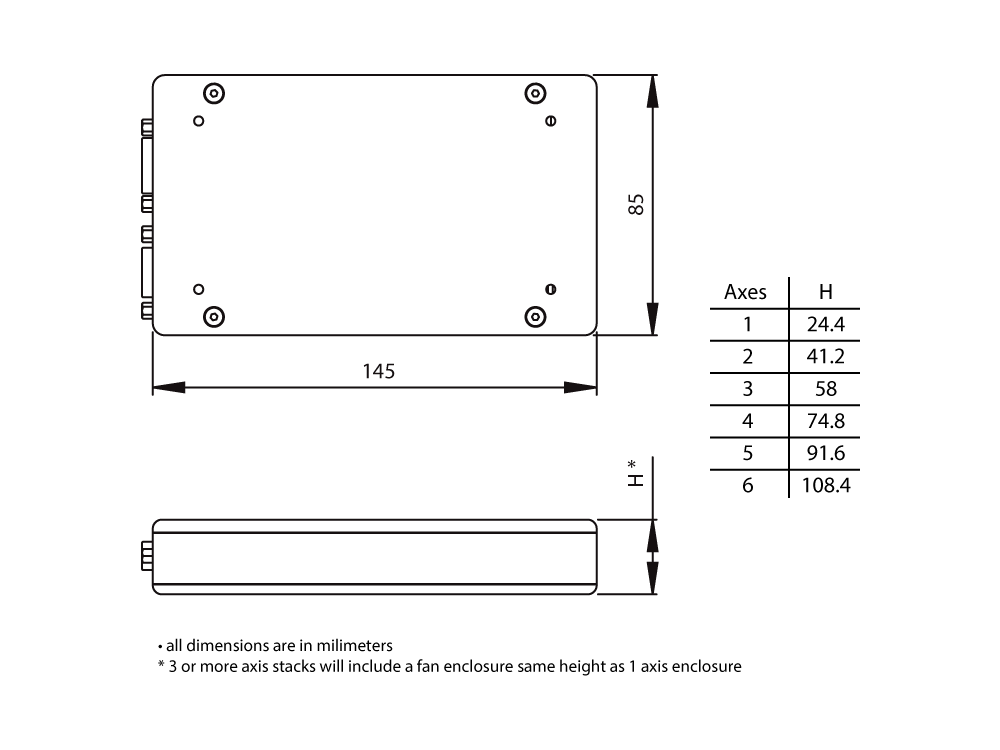

Specifications


Controller & Driver Specifications
Axes 1, 2, 3, 5, 4, 6
Motor Options Piezo Motor
PC Interface RS-232, USB 2.0
Commands ASCII commands
Power Regulated 24VDC 1A per axis
Max. Speed (mm/s) > 10 mm/s
Max. Resolution < 1 nm (Open Loop), < 1 nm (Closed Loop)
Trajectory Mode Trapezoidal velocity profile
Servo Clock Frequency 10 kHz
Program Storage 32 storable programs
Software Windows GUI, LabView VI
Encoder Interface Analog, Digital RS-422
Power Supply 25W, 40W, 60W
