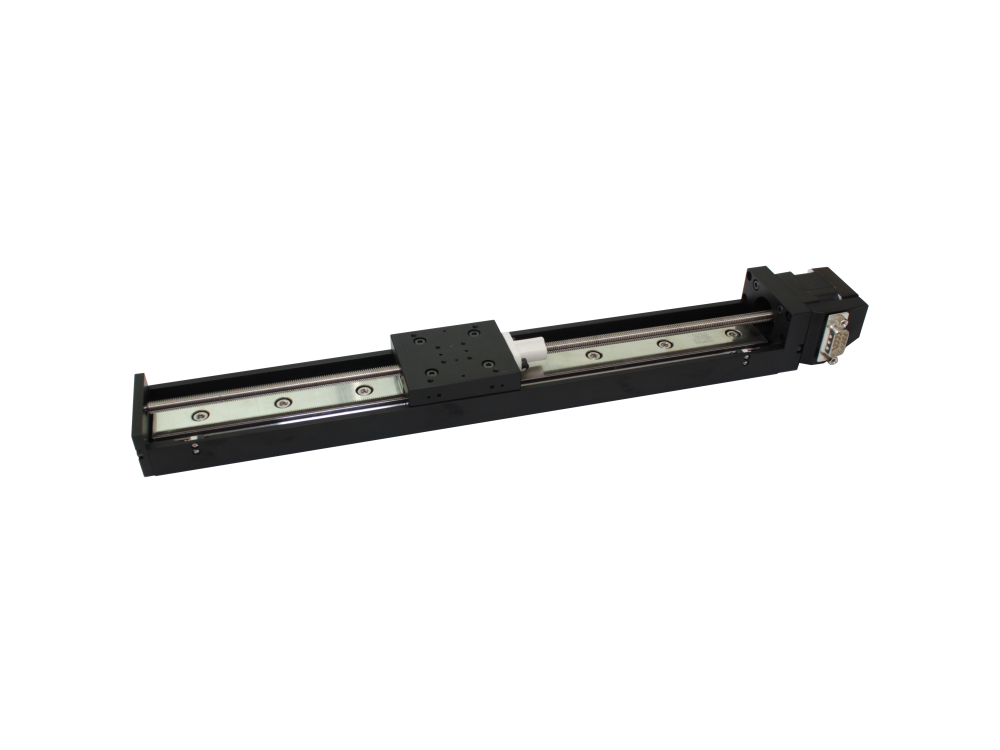

Translation Stage VT-50L

Product Highlights

  • Travel Range:
    50 mm - 300 mm (longer travel range available up to 500 mm)
  • Encoder Resolution:
    0.05 µm (Closed Loop)
  • Repeatability, bi-directional:
    ± 0.2 µm
  • Repeatability, uni-directional:
    0.2 µm
  • Max. Speed:
    10 mm/s
  • Max. Load:
    20 kg
  • Encoder Options:
    Analog or Digital
  • Bearing Type:
    Recirculating Ball Bearing


Description


The low cost VT-50L linear stage excels in applications with very limited space due to its compact design. The stage utilizes a 2-phase stepper motor and is equipped with two mechanical limit switches. Recirculating ball bearing (optional cross-roller bearing) creates high stiffness and superior performance. The VT-50L is available with an optional linear encoder with 0.05 µm resolution. VT-50L stages can be mounted in XY without any adapters, and Z-axis can be added with the use standard mounting bracket. For elevation travel ranges of 10 mm or less the VT-50L can be combined with the ES-50 elevation stage without the use of adapter plates. Versions capable of operation in vacuum (10-6 mbar) are available. The VT-50L is compatible with the MMC-200 controller.


Specifications


Travel Dependent
Travel Range 50 mm 100 mm 200 mm 300 mm
Straightness, Flatness (µm) ± 5.0 ± 7.0 ± 10.0 ± 12.0
Pitch (µrad) ± 100 ± 125 ± 150 ± 200
Yaw (µrad) ± 100 ± 125 ± 150 ± 200
Weight (g) N/A N/A N/A N/A
Limit Switch Mechanical
Motor Compatibility
Motor Type Stepper Motor
Max. Speed (mm/s) 10
Motor/Feedback Dependent Specifications
Encoder Option None (Open Loop) Analog (1 Vpp) Digital (RS-422) Digital Low Cost (0.5 µm)
Typical Resolution (µm) 0.1 0.05 0.05 0.5
Repeatability, bi-directional (µm) ± 10 ± 0.2 ± 0.2 ± 1.0
Repeatability, uni-directional (µm) 10 0.2 0.2 1.0
Load Characteristics
Orientation Fx (N) Fy (N) Fz (N) Mx (N·m) My (N·m) Mz (N·m) kax (µrad/N·m) kay (µrad/N·m)
Max. Load 50 200 200 10 10 10 100 100
Operating Conditions
Environmental Options Atmospheric High Vacuum 10-6 mbar


CAD Files


Product Configurations
3D Preview
CAD
VT-50L-11010
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-11016
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-11210
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-11216
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-11310
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-11316
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-12010
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-12016
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-12210
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-12216
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-12310
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-12316
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-13010
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-13016
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-13210
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-13216
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-13310
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-13316
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-14010
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-14016
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-14210
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-14216
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-14310
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-14316
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-11410
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-11416
Motor Type
Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-12410
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-12416
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-13410
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-13416
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
VT-50L-14410
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
VT-50L-14416
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
