Precision Positioning Stage PPS-110SM

Product Highlights

  • Travel Range:
    100 mm - 1000 mm
  • Encoder Resolution:
    0.05 µm (Closed Loop)
  • Repeatability, bi-directional:
    ± 0.2 µm
  • Repeatability, uni-directional:
    0.2 µm
  • Max. Speed:
    10 mm/s (Higher speed on request)
  • Max. Load:
    25 kg
  • Encoder Options:
    Digital Encoder
  • Height:
    40 mm
  • Bearing Type:
    Recirculating Ball Bearings


Description

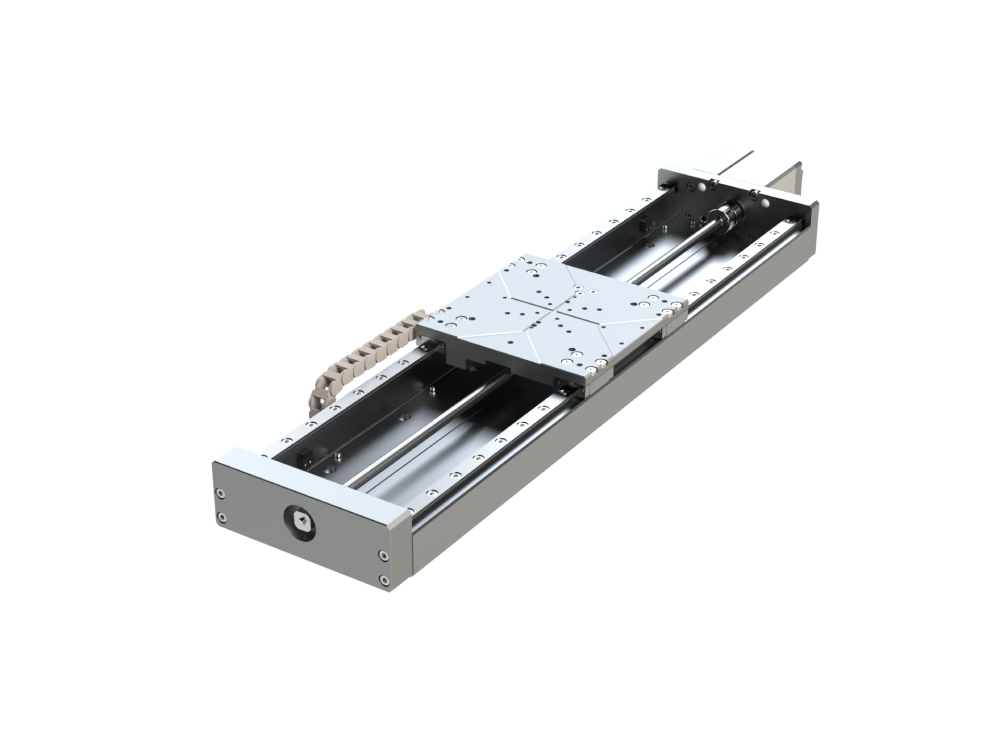

The PPS-110 is a high-precision, long travel linear stage. It is available with stepper motor, linear motor, or ballscrew drives. Recirculating ball bearings allow for smooth motion and high guiding accuracy for loads up to 25 kg. Closed loop encoder resolution of 0.05 µm is achievable with a high precision digital encoder.


Specifications


Travel Dependent
Travel Range 100 mm 200 mm 300 mm 500 mm 1000 mm
Straightness, Flatness (µm) ± 3.0 ± 4.0 ± 5.0 ± 10.0 ± 15.0
Pitch (µrad) ± 75 ± 100 ± 125 ± 200 ± 300
Yaw (µrad) ± 75 ± 85 ± 100 ± 200 ± 300
Limit Switch Mechanical
Motor Compatibility
Motor Type Stepper Motor
Max. Speed (mm/s) 10 (higher speed available)
Motor/Feedback Dependent Specifications
Encoder Option None (Open Loop) Digital (RS-422)
Typical Resolution (µm) 0.1 0.05
Repeatability, bi-directional (µm) ± 4 ± 0.2
Repeatability, uni-directional (nm) 0.4 0.2
Load Characteristics
Orientation Fx (N) Fy (N) Fz (N) Mx (N·m) My (N·m) Mz (N·m) kax (µrad/N·m) kay (µrad/N·m)
Max. Load 30.0 150.0 250.0 60.0 30.0 35.0 50.0 50.0
Operating Conditions
Environmental Options Atmospheric High Vacuum 10-6 bar High Vacuum 10-9 bar


CAD Files


Product Configurations
3D Preview
CAD
PPS-110-21010
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-21016
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-21019
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-21310
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-21316
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-21319
Motor Type
Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-22010
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-22016
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-22019
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-22310
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-22316
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-22319
Motor Type
Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-23010
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-23016
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-23019
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-23310
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-23316
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-23319
Motor Type
Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-24010
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-24016
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-24019
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-24310
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-24316
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-24319
Motor Type
Stepper Motor
Travel Range
500 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-25010
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-25016
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-25019
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-110-25310
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-110-25316
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-110-25319
Motor Type
Stepper Motor
Travel Range
1000 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
