Z Bracket - 430613

Product Highlights

  • Standard Material:
    6061-T6 Aluminum
  • Other Materials:
    i.e. Stainless Steel, Titanium, etc. available upon request

430613 PPS-60, Z Bracket-3.jpg

Description


Used to adapt the PPS-60 series to a perpendicular assembly for XZ mounting configurations.


Specifications


No specifications found for this product.


CAD Files


This product has no configurations


Products Related To Z Bracket - 430613

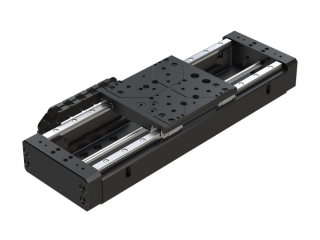

Precision Positioning Stage PPS-60LM
Linear motor Travel 25 - 300 mm Resolution to 10 nm Load up to 5 kg

High precision, long travel precision linear positioning stage


Precision Piezo Positioner PPS-60
Piezo motor Travel 25 - 300 mm Resolution to 2 nm Load up to 15 kg

High precision, long travel piezo positioner. Available with piezo, linear, or stepper motor drives. Optional encoder for increased resolution and repeatability


Precision Positioning Stage PPS-60SM
Stepper motor Travel 25 - 300 mm Resolution to 50 nm Load up to 15 kg

High precision, long travel linear positioning stage

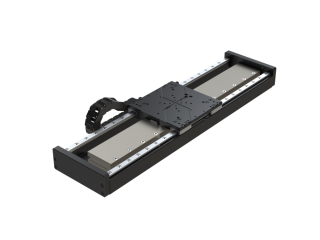

Precision Positioning Stage PPS-110LM
