Precision Positioning Stage PPS-60SM

Product Highlights

  • Travel Range:
    25 mm - 300 mm (Longer travel available on request)
  • Encoder Resolution:
    0.05 µm (Closed Loop)
  • Repeatability, bi-directional:
    ± 0.2 µm
  • Repeatability, uni-directional:
    0.2 µm
  • Max. Speed:
    5 mm/s
  • Max. Load:
    15 kg
  • Encoder Options:
    Analog or Digital
  • Bearing Type:
    Recirculating Ball Bearings


Description


The PPS-60 is a high-precision, long travel linear stage. The same stage is available with piezo motor, linear motor or stepper motor drives. Ball bearings assure high stiffness and guiding accuracy for loads up to 150 N. The PPS-60 is available with an optional linear encoder for increased resolution and repeatability. PPS-60 stages can be mounted in XY without any adapter, and a Z-axis can be added with the use of a standard mounting bracket.


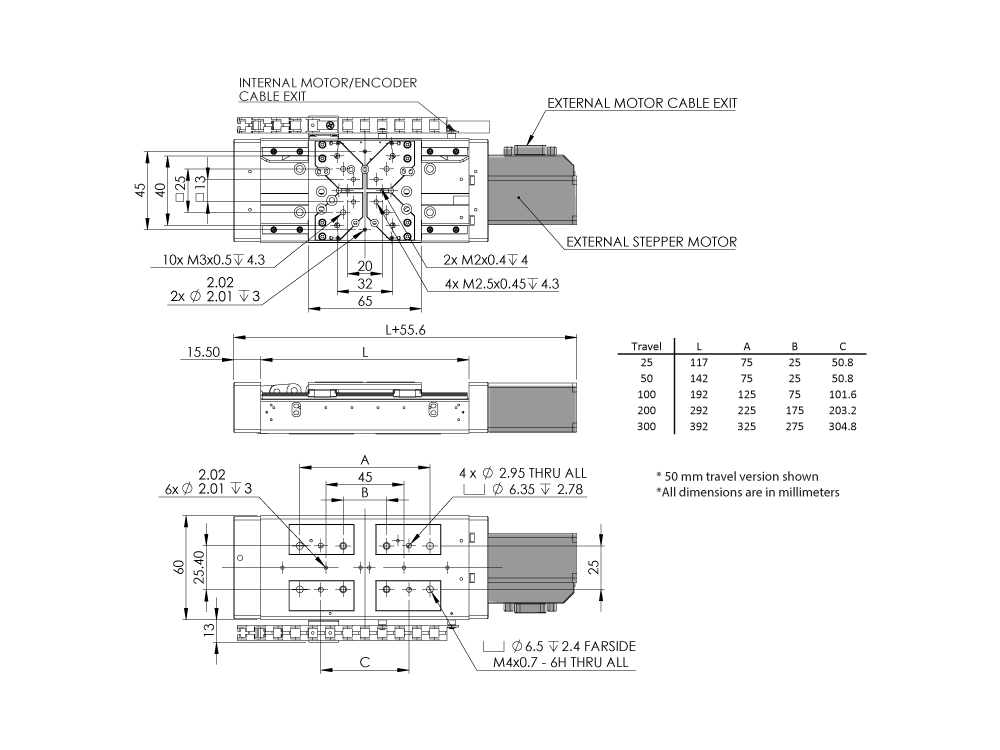

Specifications


Travel Dependent
Travel Range 25 mm 50 mm 100 mm 200 mm 300 mm
Straightness, Flatness (µm) ± 2.5 ± 4.0 ± 6.0 ± 8.0 ± 10.0
Pitch (µrad) ± 50 ± 75 ± 100 ± 125 ± 150
Yaw (µrad) ± 50 ± 75 ± 100 ± 125 ± 150
Limit Switch Mechanical
Motor Compatibility
Motor Type Internal Stepper Motor External Stepper Motor
Max. Speed (mm/s) 5 15
Motor/Feedback Dependent Specifications
Encoder Option None (Open Loop) Analog (1 Vpp) Digital (RS-422) Digital Low Cost (0.5 µm)
Typical Resolution (µm) 0.1 0.1 0.05 0.5
Repeatability, bi-directional (µm) ± 4.0 ± 0.2 ± 0.2 ± 1.0
Repeatability, uni-directional (µm) 0.2 0.2 0.2 1.0
Load Characteristics
Orientation Fx (N) Fy (N) Fz (N) Mx (N·m) My (N·m) Mz (N·m) kax (µrad/N·m) kay (µrad/N·m)
Max. Load (Internal Stepper Motor) 5 100 150 10 10 10 100 100
Max. Load (External Stepper Motor) 10 100 150 10 10 10 100 100
Operating Conditions
Environmental Options Atmospheric High Vacuum 10-6 bar High Vacuum 10-9 bar


CAD Files


Product Configurations
3D Preview
CAD
PPS-60-21010
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-21016
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-21019
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-21210
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-21216
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-21219
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-21310
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-21316
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-21319
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-21410
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-21416
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-21419
Motor Type
Internal Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-22010
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-22016
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-22019
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-22210
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-22216
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-22219
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-22310
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-22316
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-22319
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-22410
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-22416
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-22419
Motor Type
Internal Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-23010
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-23016
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-23019
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-23210
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-23216
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-23219
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-23310
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-23316
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-23319
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-23410
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-23416
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-23419
Motor Type
Internal Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-24010
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-24016
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-24019
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-24210
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-24216
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-24219
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-24310
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-24316
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-24319
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-24410
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-24416
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-24419
Motor Type
Internal Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-25010
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-25016
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-25019
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-25210
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-25216
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-25219
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-25310
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-25316
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-25319
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-25410
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-25416
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-25419
Motor Type
Internal Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-41010
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-41016
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-41019
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-41210
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-41216
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-41219
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-41310
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-41316
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-41319
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-41410
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-41416
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-41419
Motor Type
External Stepper Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-42010
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-42016
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-42019
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-42210
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-42216
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-42219
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-42310
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-42316
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-42319
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-42410
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-42416
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-42419
Motor Type
External Stepper Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-43010
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-43016
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-43019
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-43210
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-43216
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-43219
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-43310
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-43316
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-43319
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-43410
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-43416
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-43419
Motor Type
External Stepper Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-44010
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-44016
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-44019
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-44210
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-44216
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-44219
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-44310
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-44316
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-44319
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-44410
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-44416
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-44419
Motor Type
External Stepper Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-45010
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-45016
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-45019
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
None (Open Loop)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-45210
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-45216
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-45219
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-45310
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-45316
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-45319
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar
PPS-60-45410
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-45416
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 bar
PPS-60-45419
Motor Type
External Stepper Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-9 bar

Products Related To Precision Positioning Stage PPS-60SM


Modular Motion Controller MMC-200
Stepper Motor Controller Stackable to 16 axis Speed 10 mm/s USB and RS-485

Stackable stepper motor controller with speeds beyond 10 mm/s and closed loop resolutions of 50nm


Z Bracket - 430613
Z Bracket PPS-60 PPS-110

Used to adapt the PPS-110 series to a perpendicular PPS-60 for XZ mounting configurations.


Adapter Block - 430141-B
XY & XZ Adapter Block PPS-60 VT-21

Used to adapt the VT-21 series to the PPS-60 series  of linear stages for XY and XZ mounting configurations and PG-50 series of gonio stages for θ-X and θ-Z mounting configurations.


Adapter Plate XY Side - 430104-B
XY Adapter Plate PPS-60 VT-21

Used to adapt the VT-21 series to the PPS-60 series of linear stages for XY mounting configurations.


Adapter Plate, XY Base, 430169
XY Adapter Plate PPS-60 VT-21 PG-50SM

Used to adapt the VT-21 series to the PG-50 series of gonio stages for θ-X mounting configurations.


Translation Stage VT-21L
Stepper motor Travel 26 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Translation Stage VT-21S
Stepper motor Travel 10 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.
