Precision Positioning Stage PPS-60LM

Product Highlights

  • Travel Range:
    25 mm - 300 mm (Longer travel available on request)
  • Encoder Resolution:
    10 nm (Closed Loop)
  • Repeatability, bi-directional:
    ± 100 nm
  • Repeatability, uni-directional:
    100 nm
  • Max. Speed:
    100 mm/s
  • Max. Load:
    5 kg
  • Encoder Options:
    Analog or Digital
  • Bearing Type:
    Ball Bearings


Description


The PPS-60 is a high-precision, long travel linear stage. The same stage is available with piezo motor, linear motor or stepper motor drives. Ball bearings assure high stiffness and guiding accuracy for loads up to 150 N. The PPS-60 is available with an optional linear encoder for increased resolution and repeatability. PPS-60 stages can be mounted in XY without any adapter, and a Z-axis can be added with the use of a standard mounting bracket.


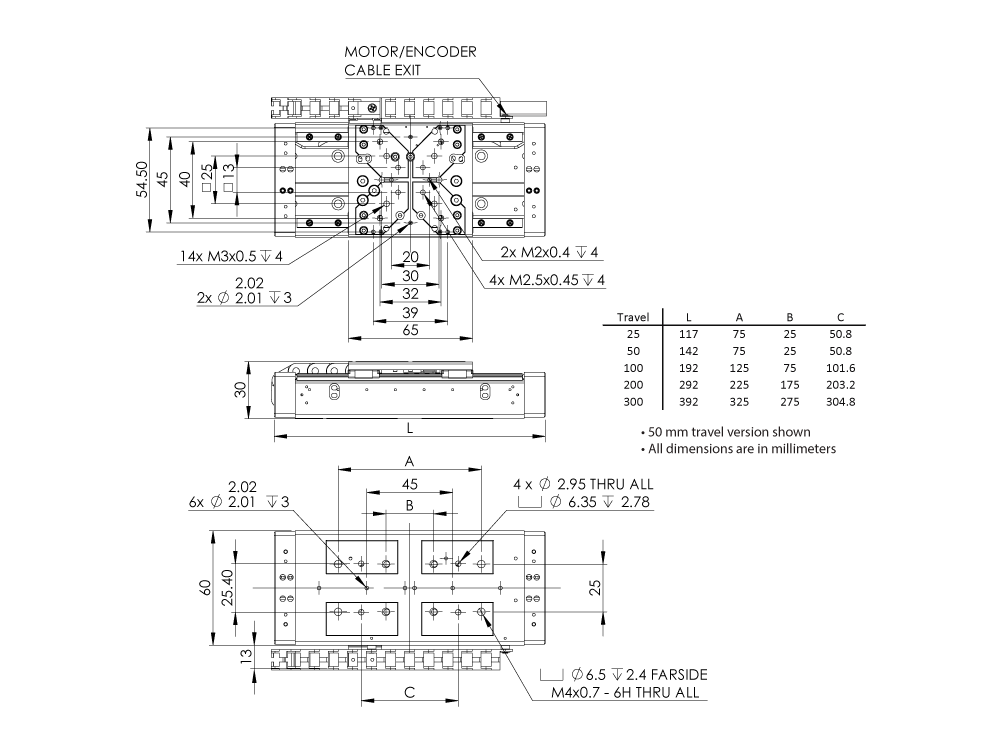

Specifications


Travel Dependent
Travel Range 25 mm 50 mm 100 mm 200 mm 300 mm
Straightness, Flatness (µm) ± 2.5 ± 4.0 ± 6.0 ± 8.0 ± 10.0
Pitch (µrad) ± 50 ± 75 ± 100 ± 125 ± 150
Yaw (µrad) ± 50 ± 75 ± 100 ± 125 ± 150
Limit Switch None, Mechanical
Motor Compatibility
Motor Type Linear Motor
Max. Speed (mm/s) 100
Motor/Feedback Dependent Specifications
Encoder Option Analog (1 Vpp) Digital (RS-422) Digital Low Cost (0.5 µm)
Typical Resolution (nm) 10 10 500
Repeatability, bi-directional (nm) ± 100 ± 100 ± 1000
Repeatability, uni-directional (nm) 100 100 1000
Load Characteristics
Orientation Fx (N) Fy (N) Fz (N) Mx (N·m) My (N·m) Mz (N·m) kax (µrad/N·m) kay (µrad/N·m)
Max. Load 5 Peak 100 50 10 10 10 100 100
Operating Conditions
Environmental Options Atmospheric High Vacuum 10-6 mbar


CAD Files


Product Configurations
3D Preview
CAD
PPS-60-31200
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-31206
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-31210
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-31216
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-31300
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-31306
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-31310
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-31316
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-31400
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-31406
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-31410
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-31416
Motor Type
Linear Motor
Travel Range
25 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32206
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32210
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-32216
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32300
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-32306
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32310
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-32316
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32400
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-32406
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-32410
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-32416
Motor Type
Linear Motor
Travel Range
50 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33200
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-33206
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33210
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-33216
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33300
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-33306
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33310
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-33316
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33400
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-33406
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-33410
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-33416
Motor Type
Linear Motor
Travel Range
100 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34200
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-34206
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34210
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-34216
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34300
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-34306
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34310
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-34316
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34400
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-34406
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-34410
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-34416
Motor Type
Linear Motor
Travel Range
200 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35200
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-35206
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35210
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-35216
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Analog (1 Vpp)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35300
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-35306
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35310
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-35316
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital (RS-422)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35400
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
Atmospheric
PPS-60-35406
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
None
Environmental Options
High Vacuum 10-6 mbar
PPS-60-35410
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
Atmospheric
PPS-60-35416
Motor Type
Linear Motor
Travel Range
300 mm
Encoder Option
Digital Low Cost (0.5 µm)
Limit Switch
Mechanical
Environmental Options
High Vacuum 10-6 mbar

Products Related To Precision Positioning Stage PPS-60LM


Z Bracket - 430613
Z Bracket PPS-60 PPS-110

Used to adapt the PPS-110 series to a perpendicular PPS-60 for XZ mounting configurations.


Adapter Plate XY Side - 430104-B
XY Adapter Plate PPS-60 VT-21

Used to adapt the VT-21 series to the PPS-60 series of linear stages for XY mounting configurations.


Adapter Block - 430141-B
XY & XZ Adapter Block PPS-60 VT-21

Used to adapt the VT-21 series to the PPS-60 series  of linear stages for XY and XZ mounting configurations and PG-50 series of gonio stages for θ-X and θ-Z mounting configurations.


Adapter Plate, XY Base, 430169
XY Adapter Plate PPS-60 VT-21 PG-50SM

Used to adapt the VT-21 series to the PG-50 series of gonio stages for θ-X mounting configurations.


Elevation Stage PZS-90
Stepper motor Travel 35 mm Resolution to 0.1 µm Load up to 15 kg

Suitable for limited space. Pre-loaded ball slides ensure smooth motion and high stiffness


Translation Stage VT-21L
Stepper motor Travel 26 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Translation Stage VT-21S
Stepper motor Travel 10 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Precision Positioning Stage PPS-28LM
Linear motor Travel 26 - 102 mm Resolution to 10 nm Load up to 1 kg

Suitable for applications requiring very fast speeds and high stiffness
