Adapter Plate XY Side - 430104-B

Product Highlights

  • Standard Material:
    6061-T6 Aluminum
  • Other Materials:
    i.e. Stainless Steel, Titanium, etc. available upon request

430104-B ADAPTER PLATE-2.jpg
430104-B Dimensions.png

Description


Used to adapt the VT-21 series to the PPS-60 series of linear stages for XY mounting configurations.


Specifications


No specifications found for this product.


CAD Files


This product has no configurations


Products Related To Adapter Plate XY Side - 430104-B


Translation Stage VT-21L
Stepper motor Travel 26 mm Resolution to 50nm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Translation Stage VT-21S
Stepper motor Travel 10 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Precision Positioning Stage PPS-60LM
Linear motor Travel 25 - 300 mm Resolution to 10 nm Load up to 5 kg

High precision, long travel linear positioing stage with ball bearings for smooth motion and high guiding accuracy.


Precision Piezo Stage PPS-60
Piezo motor Travel 25 - 300 mm Resolution to 2 nm Load up to 15 kg

High precision, long travel piezo positioner. Available with optional encoder for increased resolution and repeatability.

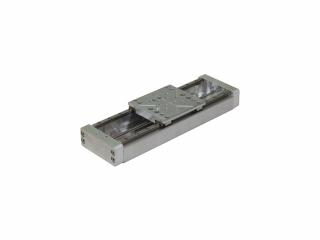

Precision Positioning Stage PPS-60SM
