Showing products in Linear Motion


Translation Stage VT-21S
Stepper motor Travel 10 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Translation Stage VT-21L
Stepper motor Travel 26 mm Resolution to 50nm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Precision Positioning Stage PPS-20SM
Stepper motor Travel 10 - 51 mm Resolution to 50nm Load up to 20 N

Suitable for applications requiring high speed and high blocking force


Precision Positioning Stage PPS-28SM
Stepper motor Travel 26 - 102 mm Resolution to 50nm Load up to 5 kg

Linear positioning stage for applications requiring high speed and high blocking force


Precision Positioning Stage PPS-60SM
Stepper motor Travel 25 - 300 mm Resolution to 50 nm Load up to 15 kg

High precision, long travel linear positioning stage


Precision Positioning Stage PPS-110SM
Stepper motor Travel 100 - 1000 mm Resolution to 50 nm Load up to 25 kg

High precision, long travel linear stage. Optional encoder for increased resolution and repeatability


Translation Stage VT-50L
Stepper motor Travel 50 - 300 mm Resolution to 50 nm Load up to 20 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Elevation Stage ES-50SM
Stepper motor Travel 10 mm Resolution to 50 nm Load up to 1 kg

Suitable for limited space. Pre-loaded ball slides ensure smooth motion and high stiffness


Elevation Stage PZS-90
Stepper motor Travel 35 mm Resolution to 0.1 µm Load up to 15 kg

Suitable for limited space. Pre-loaded ball slides ensure smooth motion and high stiffness


Micro Pusher MP-21S / MP-21L
Stepper motor Travel 12 - 25 mm Resolution 0.1 µm Load up to 20 N

Designed for limited space applications for actuation of manual drive stages and mirror mounts


Micro Pusher MP-15
Stepper motor Travel 10 mm Resolution 0.1 µm Load up to 1 N

The MP-15 linear actuator is designed for applications with very limited space conditions.


Micro Precision Actuator, UHV MPA-20
Stepper motor Travel 12 mm Resolution to 0.1 µm Load up to 10 kg

Micronix MPA-20 is designed to operate in a limited space in an ultra-high vacuum environment


Precision Linear Positioning Stage PPS-20LM
Linear motor Travel 11 - 25 mm Resolution to 10 nm Load up to 2 N

Suitable for applications requiring very fast speeds and high stiffness


Precision Positioning Stage PPS-28LM
Linear motor Travel 26 - 102 mm Resolution to 10 nm Load up to 1 kg

Suitable for applications requiring very fast speeds and high stiffness

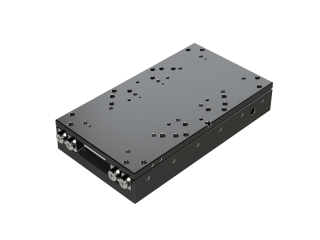

Precision Positioning Stage PPS-50LM
Linear Motor Travel 26-100mm Resolution to 1 nm Load up to 1 Kg

High speed, high stiffness, high precision motion with <1nm resolution


Precision Positioning Stage PPS-60LM
Linear motor Travel 25 - 300 mm Resolution to 10 nm Load up to 5 kg

High precision, long travel precision linear positioning stage


Precision Positioning Stage PPS-110LM
Linear motor Travel 100 - 1000 mm Resolution to 10 nm Load up to 25 kg

High precision, long travel positioner with ball bearings for smooth motion and high guiding accuracy
