Showing products in Nano Positioning - Piezo


Piezo Positioner PP-12
Piezo motor Travel 4 mm Resolution to 1 nm Load up to 0.1 kg

Ultra-compact linear piezo stage. Low profile with high load capacity with multi-phase piezo motor. Special environment version available.


Piezo Positioner PP-18
Piezo motor Travel 12 - 51 mm Resolution to 40 nm Load up to 0.5 kg

Low cost linear piezo stage utilizing our patented multi-piezo motor. Miniature crossed roller bearings ensure high stiffness.


Precision Piezo Positioner PPS-20
Piezo motor Travel 12 - 51 mm Resolution to 2 nm Load up to 2 kg

High precision, long travel piezo positioner. Utilizes our patented multi-phase piezo motor, resulting in high speed and high block force.


Precision Piezo Positioner PPS-28
Piezo motor Travel 26 - 102 mm Resolution to 2 nm Load up to 5 kg

High precision, long travel piezo positioner. Utilizes our patented multi-phase piezo motor, resulting in high speed and high block force.


Precision Piezo Stage PPS-50
Piezo motor Travel 26-102 Resolution to 2 nm Load up to 3 kg

High precision, high load, high stiffness precision positioning stage with optional Absolute Encoder

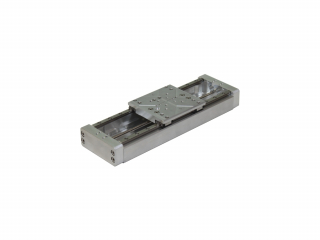

Precision Piezo Positioner PPS-60
Piezo motor Travel 25 - 300 mm Resolution to 2 nm Load up to 15 kg

High precision, long travel piezo positioner. Available with piezo, linear, or stepper motor drives. Optional encoder for increased resolution and repeatability

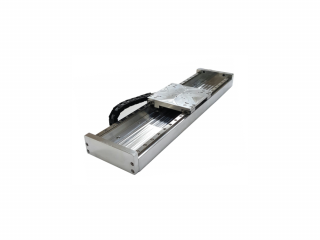

Precision Piezo Positioner PPS-110
Piezo motor Travel 100 - 1000 mm Resolution to 1 nm Load up to 25 kg

High precision, long travel piezo positioner. Available with piezo, linear, or ballscrew drives. Optional encoder for increased resolution and repeatability


Modular Linear Stage MLS-25
Piezo Motor Travel 25 - 236mm Resolution to 20nm Load up to 2kg

Highly flexible and customizable motion system design. X-Y, X-Y-Z mounting, XY gantry systems, as well as two or more slides per bearing are possible.

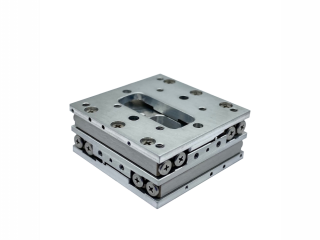

Piezo Positioner Cross Stage PPX-32CR
Piezo motor Travel 18 x 18 mm Resolution to 2 nm Load up to 1 kg

Low profile, integrated XY stage with height of only 14 mm utilizing our patented multi-phase piezo motor.

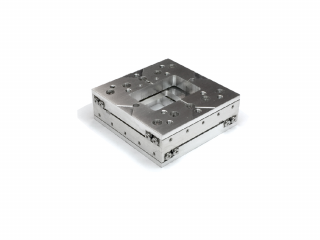

Piezo Positioner Cross Stage PPX-50
Piezo motor Travel 28 x 28 mm Resolution to 2 nm Load up to 3 kg

Low profile, long travel integrated XY stage with open aperture and height of only 17.5mm.


X-BOT-120
Piezo Motor Travel ± 6 mm / ± 6° Resolution to 10 nm / 1 µrad Load up to 500 g

Miniature parallel kinematics positioning system utilizing Micronix's piezo stages


Elevation Stage ES-50PM
Piezo Motor Travel 10 mm Resolution to 1 nm Load up to 1 kg

Suitable for limited space. Cross Roller bearings ensure smooth motion and high stiffness


Piezo Rotation Stage PR-20
Piezo Motor Travel 360 degrees Resolution to 500 µdeg Load up to 0.1 kg

Compact rotation stage with continuous, unlimited travel. Pre-loaded ball bearings ensure smooth motion and high stability


Piezo Rotation Stage PR-32L
Piezo motor Travel 360 degrees Resolution to 10 µdeg Load up to 1kg

Compact rotation stage with continuous, unlimited travel. Pre-loaded ball bearings ensure smooth motion and high stability


Piezo Rotation Stage PR-50
Piezo motor Travel 360 degrees Resolution to 10 µdeg Load up to 3 kg

Compact rotation stage with continuous, unlimited travel and 1 in. aperture. Pre-loaded ball bearings ensure smooth motion and high stability

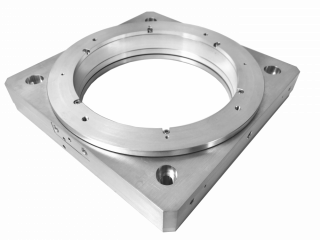

Piezo Rotation Stage PR-160
Piezo Motor Travel 360 degrees Resolution to 10 µdeg Load up to 10 kg

Compact rotation stage with continuous, unlimited travel and 120 mm aperture. Crossed roller ball bearings ensure smooth motion and high stability

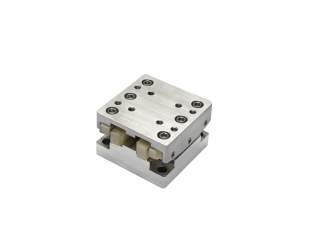

Precision Gonio Stage PG-25
Piezo Motor Travel ± 5 degrees Resolution to 41 µdeg Load up to 0.05 kg

Compact motorized gonio stage with for limited-space applications.


Precision Gonio Stage PG-50PM
Piezo motor Travel ± 5 degrees Resolution to 10 µdeg Load up to 1 kg

Compact gonio stage with for limited-space applications. Pre-loaded cross-roller bearings with precision worm drive for high stiffness
