Nano Positioning - Piezo
Nano Positioning - Piezo

Our precision piezo stages offers travel up to 1000 mm and a load of up to 25 kg with typical resolutions of 1 nm or better.

Linear Motion
Linear Motion

Our linear motion stages offers travel up to 1000 mm and a load of up to 25 kg with typical resolutions of 10 nm or better.

Rotary Motion - image29.png
Rotary Motion

Our rotary motion stages offers 360° continuous travel and a load of up to 2 kg with typical resolutions of 1 m° or better.



Showing products in Positioners


Piezo Positioner PP-12
Piezo motor Travel 4 mm Resolution to 1 nm Load up to 0.25 kg

Ultra-compact linear piezo stage. Low profile with high load capacity with multi-phase piezo motor. Special environment version available.


Piezo Positioner PP-18
Piezo motor Travel 12 - 51 mm Resolution to 40 nm Load up to 0.5 kg

Low cost linear piezo stage utilizing our patent-pending multi-piezo motor. Miniature crossed roller bearings ensure high stiffness.


Precision Piezo Positioner PPS-20
Piezo motor Travel 12 - 51 mm Resolution to 1 nm Load up to 2 kg

High precision, long travel piezo positioner. Utilizes our patent-pending multi-phase piezo motor, resulting in high speed and high block force.


Precision Piezo Positioner PPS-28
Piezo motor Travel 26 - 102 mm Resolution to 1 nm Load up to 5 kg

High precision, long travel piezo positioner. Utilizes our patent-pending multi-phase piezo motor, resulting in high speed and high block force.


Precision Piezo Positioner PPS-60
Piezo motor Travel 25 - 300 mm Resolution to 1 nm Load up to 15 kg

High precision, long travel piezo positioner. Available with piezo, linear, or stepper motor drives. Optional encoder for increased resolution and repeatability


Precision Piezo Positioner PPS-110
Piezo motor Travel 100 - 1000 mm Resolution to 1 nm Load up to 25 kg

High precision, long travel piezo positioner. Available with piezo, linear, or ballscrew drives. Optional encoder for increased resolution and repeatability


Piezo Positioner Cross Stage PPX-32CR
Piezo motor Travel 18 x 18 mm Resolution to 1 nm Load up to 1 kg

Low profile, integrated XY stage with height of only 14 mm utilizing our patent-pending multi-phase piezo motor.


Piezo Positioner Cross Stage PPX-50
Piezo motor Travel 28 x 28 mm Resolution to 1 nm Load up to 3 kg

Low profile, long travel integrated XY stage with open aperture and height of only 17.5mm.


Elevation Stage ES-50PM
Piezo Motor Travel 10 mm Resolution to 1 nm Load up to 1 kg

Suitable for limited space. Cross Roller bearings ensure smooth motion and high stiffness


Piezo Rotation Stage PR-32L
Piezo motor Travel 360 degrees Resolution to 10 µdeg Load up to 1kg

Compact rotation stage with continuous, unlimited travel. Pre-loaded ball bearings ensure smooth motion and high stability


Piezo Rotation Stage PR-50
Piezo motor Travel 360 degrees Resolution to 10 µdeg Load up to 3 kg

Compact rotation stage with continuous, unlimited travel and 1 in. aperture. Pre-loaded ball bearings ensure smooth motion and high stability

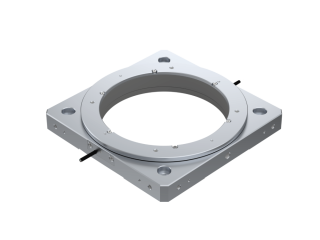

Piezo Rotation Stage PR-160
Piezo Motor Travel 360 degrees Resolution to 10 µdeg Load up to 10 kg

Compact rotation stage with continuous, unlimited travel and 120 mm aperture. Crossed roller ball bearings ensure smooth motion and high stability


Precision Gonio Stage PG-50PM
Piezo motor Travel ± 5 degrees Resolution to 10 µdeg Load up to 1 kg

Compact gonio stage with for limited-space applications. Pre-loaded cross-roller bearings with precision worm drive for high stiffness


Piezo Positioner Nanopos Hexapod
Piezo Motor Travel ± 5 mm / ± 10° Resolution to 10 nm / 1 µrad Load up to 500 g

Symétrie's most compact parallel kinematics positioning system utilizing Micronix's piezo stages


Translation Stage VT-21S
Stepper motor Travel 10 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Translation Stage VT-21L
Stepper motor Travel 26 mm Resolution to 0.05 µm Load up to 1 kg

Excels in applications with limited space due to compact design. Utilizes 2-stage stepper motor with pre-loaded ball slide.


Precision Positioning Stage PPS-20SM
Stepper motor Travel 10 - 51 mm Resolution to 0.05 µm Load up to 20 N

Suitable for applications requiring high speed and high blocking force


Precision Positioning Stage PPS-28SM
Stepper motor Travel 26 - 102 mm Resolution to 0.05 µm Load up to 5 kg

Linear positioning stage for applications requiring high speed and high blocking force


Precision Positioning Stage PPS-60SM
Stepper motor Travel 25 - 300 mm Resolution to 0.05 µm Load up to 15 kg

High precision, long travel linear positioning stage


Precision Positioning Stage PPS-110SM
Stepper motor Travel 100 - 1000 mm Resolution to 0.05 µm Load up to 25 kg

High precision, long travel linear stage. Optional encoder for increased resolution and repeatability
